SPUTTERED TYPE
ABYSS
Discover the sophistication of a deep sea hue a high end multi sputtered film that brings elegant color without compromising clarity. With outstanding solar heat rejection and reliable UV/IR protection, it keeps your cabin cool and comfortable even under intense sunlight. Durable and fade resistant, it offers long lasting performance and a refined aesthetic that stands out — subtle, tasteful, enduring.

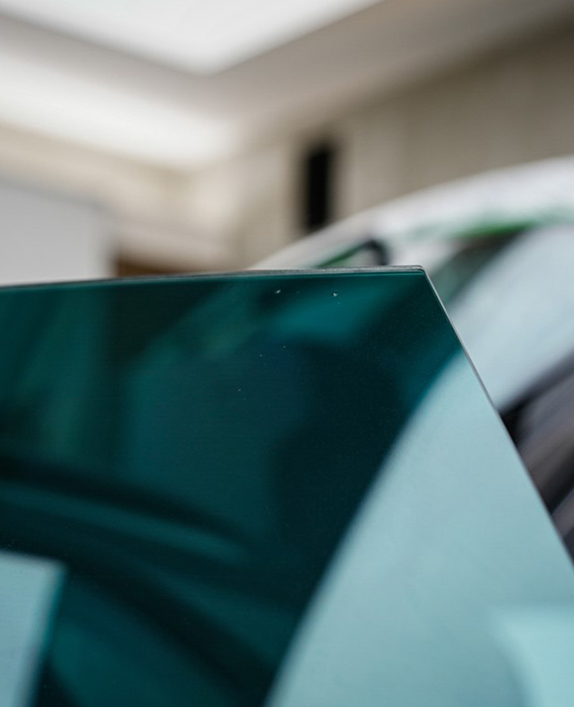

A deep sea hue beyond words
- Deep-Sea Color
- Experience an automotive film like no other.
The sputtered-coated hybrid film reveals a vivid,
deep sea hue that stands out with elegance.
- Deep-Sea Color ·
- Solar Control Performance
-
Crafted with advanced sputter coating technology,
this film delivers exceptional solar heat rejection and infrared/UV blocking keeping inside cool,
protecting interior materials, and enhancing driving comfort even under intense sun exposure.
- Solar Control Performance ·
- Excellent Protection
- Unlike traditional dyed or metallized tints, the multilayer sputtered film
offers stable performance over time:
no fading, no excessive reflection, and high durability preserving clarity,
strength, and performance for years.
- Excellent Protection ·
- Market‑proven
- Beloved for its striking design and unwavering performance,
it’s proven itself a standard setter, not just a fleeting trend.
- Market‑proven ·
Specifications
| Specifications | Visible Light | Solar Heat | IRR | SC | TSER | Thickness | |||||||
| VLT | VLR-E | VLR -I | VLA | Transmittance | Reflectance-E | Reflectance-I | Absorbance | 950nm | 1,400nm | ||||
| ABYSS 99S-10 | 9.3 % | 14.0 % | 9.0 % | 76.7 % | 7.7 % | 25.1 % | 13.8 % | 67.2 % | 97.0 % | 100.0 % | 0.3 % | 74.4 % | 2.0mil |
| ABYSS 99S-30 | 28.2 % | 14.4 % | 16.0 % | 57.4 % | 17.4 % | 25.7 % | 25.8 % | 56.9 % | 99.0 % | 100.0 % | 0.4 % | 67.4 % | 2.5mil |
*All specifications are based on internal testing and may vary depending on testing conditions and methods.
Packing Unit
| Type 1. | 1 Box (RL) : 1.52 * 15 meter |
| Type 2. | 1 Box (RL) : 1.52 * 30 meter |
Packing size
| Type 1. | 1 Box (RL) Size : 1620*155*140 mm Weight : 4.5 kg |
| Type 2. | 1 Box (RL) Size : 1620*155*140 mm Weight : 9 kg |
Application
-
Car -
Ship -
Architecture -
Automobile -
Office -
Home
